Hydraulic Rubber Cutter
Hydraulic Rubber Cutter
Equipment use

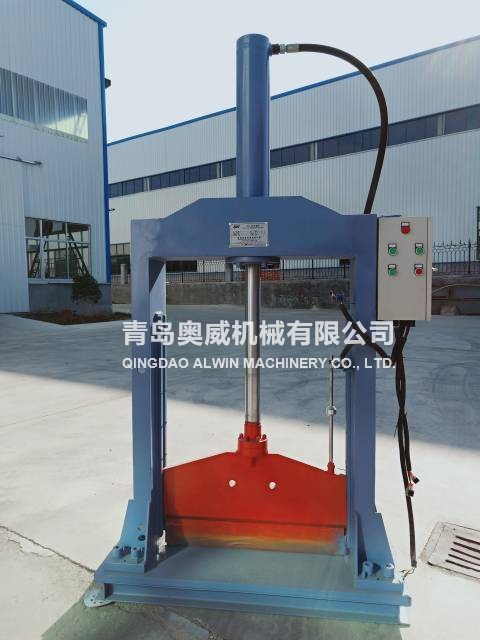

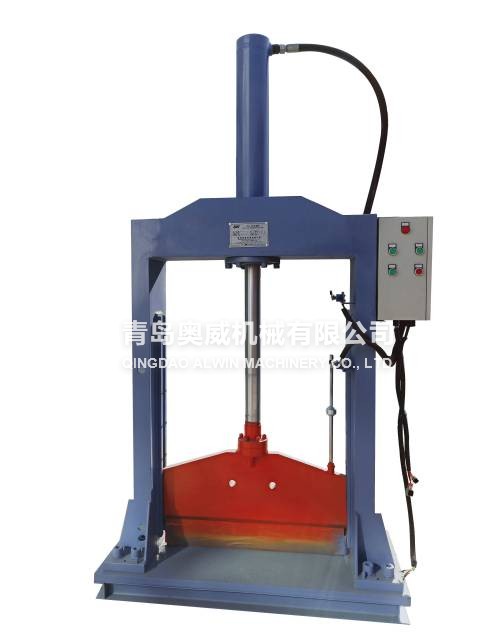

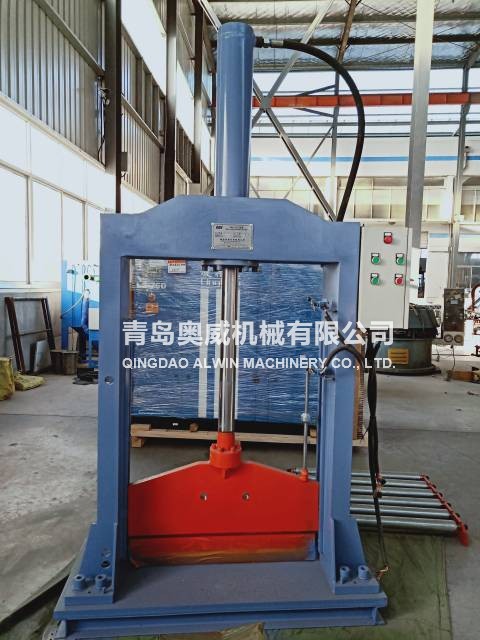

The rubber cutter is mainly used to cut the natural rubber, synthetic rubber and other plastic materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber. This rubber cutter mainly consists of cutting knife, frame, cylinder, base, auxiliary table, hydraulic system and electric system. The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife.


Hydraulic Rubber Cutter
Hydraulic Rubber Cutter
Hydraulic Rubber Cutter
Hydraulic Rubber Cutter
Parameter
型號 TypeXQL-80XQL-160

電機功率

Motor power (kw)

5.57.5

額定切斷力

Rated cutting force (kn)

80160

切膠寬度

Cutting width (mm)

690790

切膠行程

Cutting stroke (mm)

680700

工作油壓

Pressure of working oil (Mpa)

88

重量

Weight (kg)

10001200

外形尺寸

Overall dim. (LxWxH) (mm)


2200X1000X25002500X1000X2500
